Storage A-Frame Plus SAF03

General

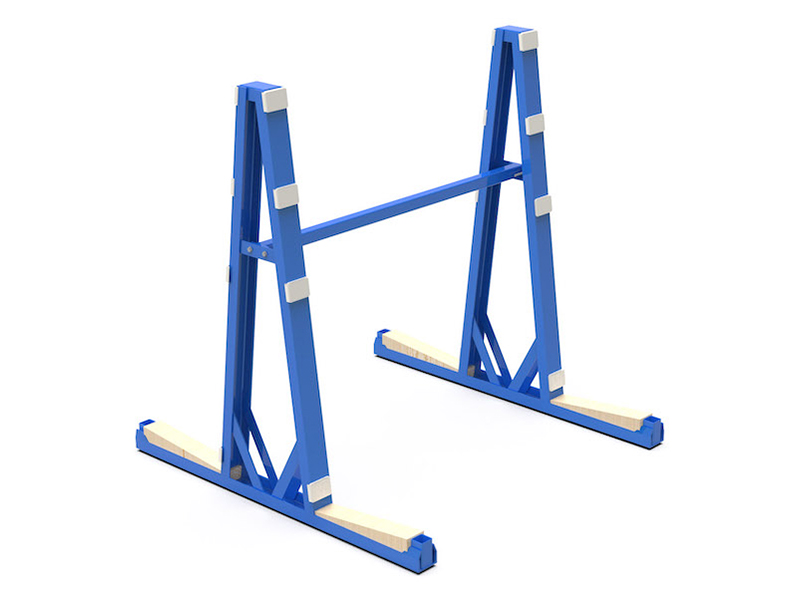

The heavy-duty Aardwolf Storage A-Frame Plus SAF03 has been designed to unpack slabs from wooden crates.  Large angled, lacquered wooden gluts fitted in the base channel create a bias so that slabs fall towards the frame.  Strong safety posts with sections 50x50 mm (2”x2”) at the rail ends protect workers in case of mishaps where the slabs tip away from the frame.  In many jurisdictions, safety a-frames are a requirement of work safety policies and insurance policies when unloading crates containing large slabs.  The a-frame Includes protective timber on the base rails and rubber cushioning material on the face of the uprights.  Steel cross member and fasteners included.

Features

• Heavy-duty steel construction.

• Full slab design.

• Sold and used as a set.

• Store slabs on both sides.

• Durable powder coat finishes for weather protection.

• Holes in the base rail drain water to reduce corrosion.

• Rubber pads on the face of the vertical frame.

• The middle support bar connects each a-frame end piece.

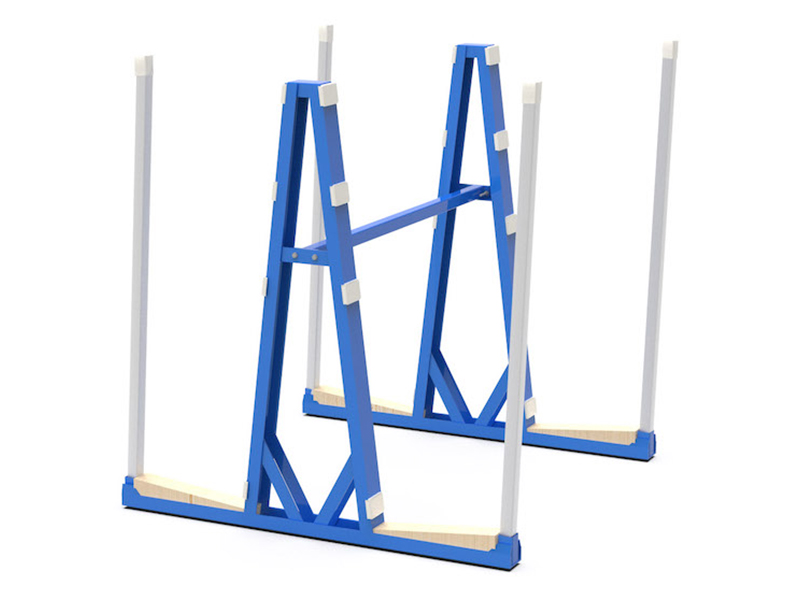

• 4 safety posts 100 x 50 x 1400mm high strength posts.

• Working load limit: 15,000kg (33,069lb).

• Net weight: 102.5kg (226lb).

• Gross weight: 108kg (238lb).

• Packaging dimensions of the frame: L.1840 x W.220 x H.2000mm (72.4"x8.7"x78.7").

Note: The safety posts are not included.
