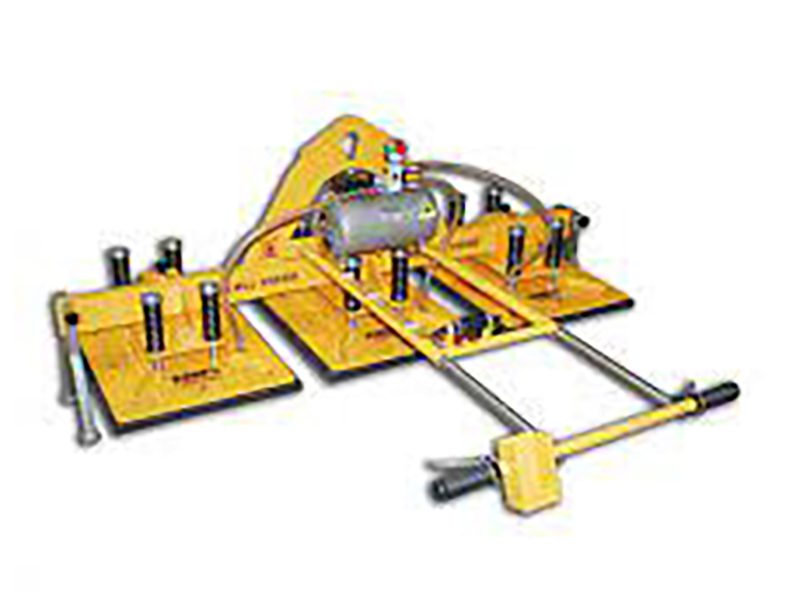

Vacuum Lifter AVLP3/3750
SKU: AVLP33750
Product code: AVLP3-3750
General
This vacuum lifter is designed to lift concrete panels. It can also lift smooth or rough marble and granite slabs. Featuring rugged construction with the ability to lift materials. Powered by compressed air.
Features
The stainless steel vacuum tank ensures safe pickup in case of a sudden power break to the pump.
A rechargeable 3.7V battery powers the audio and visual alarm system.
Slider valve with ON/OFF position for the attachment of material to vacuum pads and release of material from vacuum pads.
Specifications
Metric | Imperial | |
Number of pads | 3 | - |
Pad size | 800x500 mm | 31.5"x19.7" |
Working load limit | 3750 kg | 8267 lb |
Net weight | 220 kg | 485 lb |
Gross weight | - | - |
Packaging dimensions | - | - |
Battery information for the device
Battery code | GBA 12V 2.0Ah Bosch |
Battery type | Lithium-ION |
Voltage | 12V |
Current | 2.0Ah |
Quantity | 1 |
Continuous operation time with mode-saving pressure | 2 hours |
Working time with mode saving pressure | 6 hours |
Continuous operation time with mode audio alarm only | 120 hours |
Working time with mode audio alarm only | 360 hours |
Battery charger
Battery code | GAL 12V-40 Bosch |
Input supply voltage | 220-240VAC |
Output voltage | 12V |
Output current | 4.0Ah |
Quantity | 1 |
Full charger time | 0.5 hour |
Weight | 460 gram |
Compressed air requirement
Air consumption | 236 liters/minute |
Supply air pressure | 5.8 bars (72 psi) |
Specifications for Vacuum Lifter AVLP3/3750
Weight Load Limit | 3750 kg | 8267 lbs |
Product Weight | 220 kg | 485 lbs |
Power Source | Pneumatic |
Bề mặt vật liệu | Rough or Smooth |
